Blown Fuse on a Mini-Split Control Board Diagnosed and Fixed

When a mini-split stops blowing cool air, most people assume the worst - a bad compressor, a refrigerant leak, something expensive. But honestly, a lot of the time it comes down to something much smaller. That was exactly the case here.

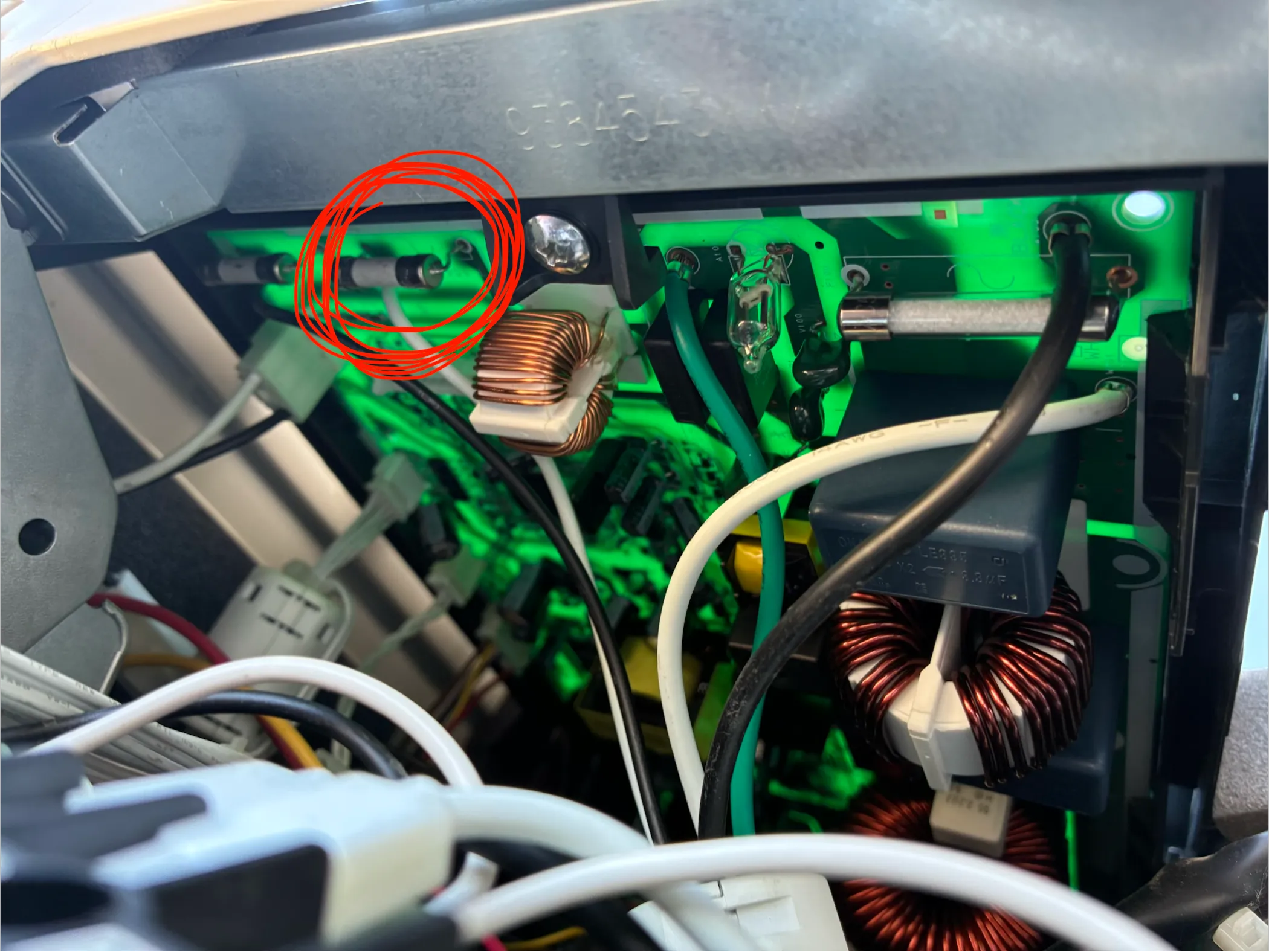

We got a call about a unit that had stopped cooling. After pulling the panels and getting into the control board, we found the culprit - a single blown fuse. That's it. One small component on the board had failed, and it was enough to take the whole system down. We've circled it so you can see exactly where we found it.

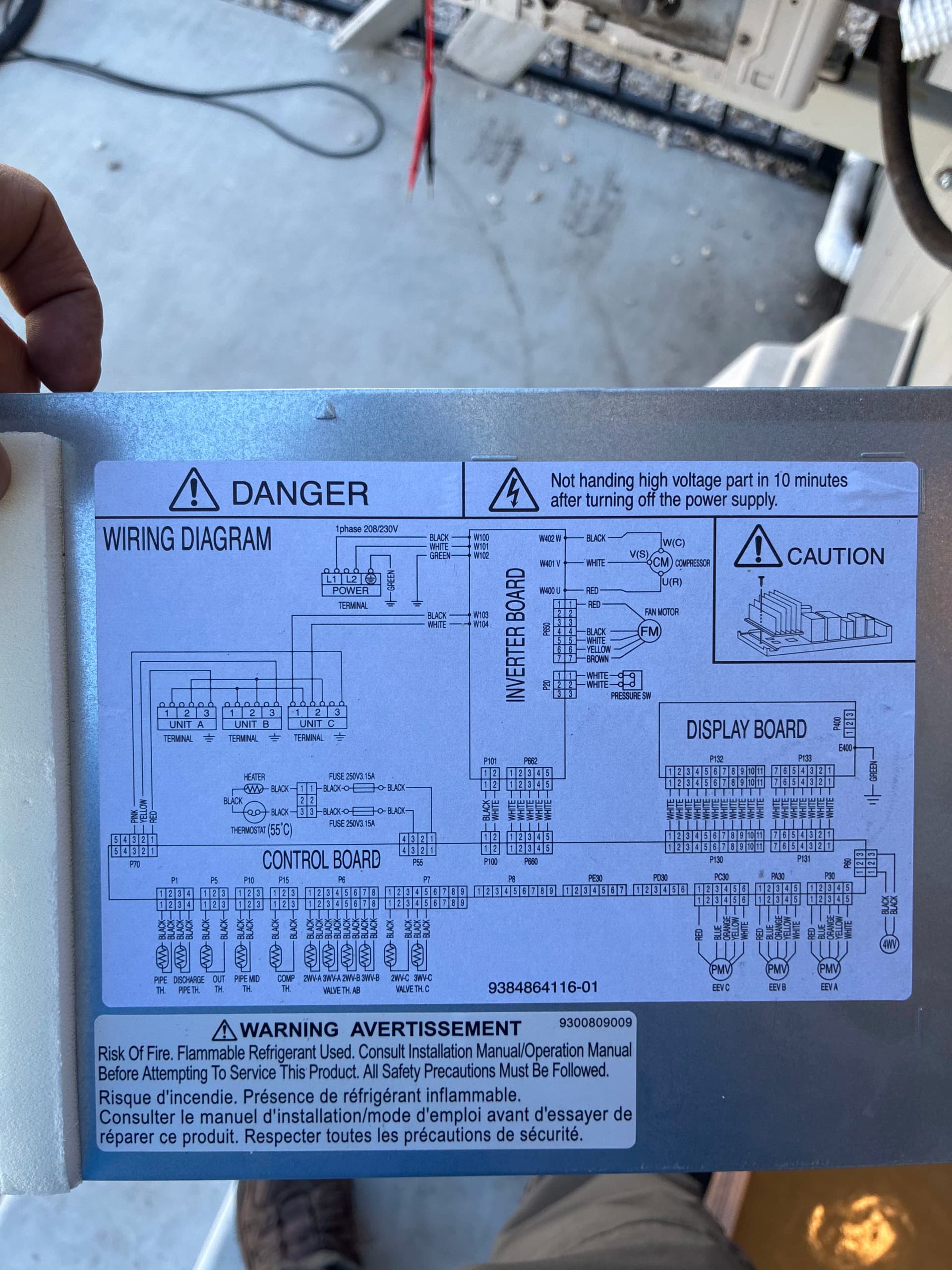

This is why real diagnostics matter. A rushed technician might misread the symptoms and start replacing parts that don't need replacing. We take the time to trace the wiring, cross-reference the system's wiring diagram, and actually confirm the root cause before touching anything. It takes more time upfront, but it saves the customer money and gets the repair done right.

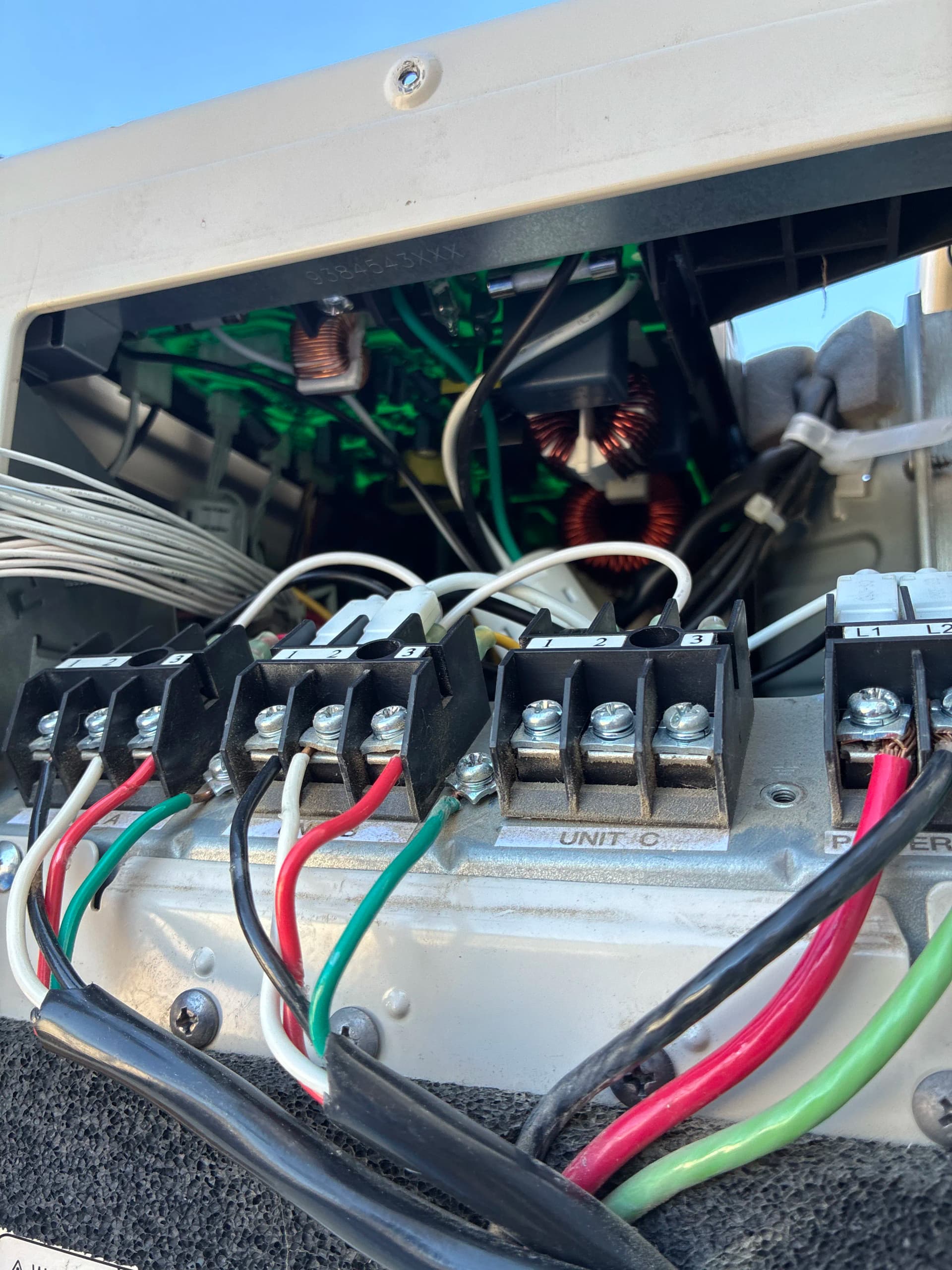

Mini-splits are more complex internally than most people realize. Multi-zone systems especially - with separate terminal banks for each unit and multiple boards working together - require someone who knows what they're looking at. Knowing how to read the wiring diagram and trace a fault through the system is what separates a real repair from a parts-swapping guessing game.

And yes - this one happened to be at what looks like a dog facility. The pups were out enjoying the yard while we worked. Keeping them comfortable matters just as much as keeping the people inside cool. If your system has stopped cooling and you're not sure why, don't sit on it.
